Ultra low frequency vibration sensor

  • MLS / V-9 ultra-low frequency vibration displacement / speed sensor
  • MLS / V-9 ultra-low frequency vibration displacement / speed sensor
  • MLS / V-9 ultra-low frequency vibration displacement / speed sensor
  • MLS / V-9 ultra-low frequency vibration displacement / speed sensor
  • MLS / V-9 ultra-low frequency vibration displacement / speed sensor
MLS / V-9 ultra-low frequency vibration displacement / speed sensorMLS / V-9 ultra-low frequency vibration displacement / speed sensorMLS / V-9 ultra-low frequency vibration displacement / speed sensorMLS / V-9 ultra-low frequency vibration displacement / speed sensorMLS / V-9 ultra-low frequency vibration displacement / speed sensor

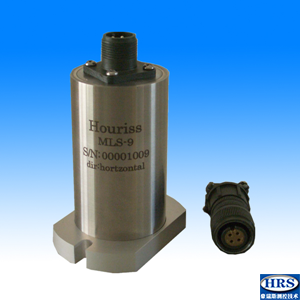

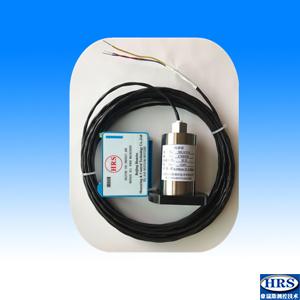

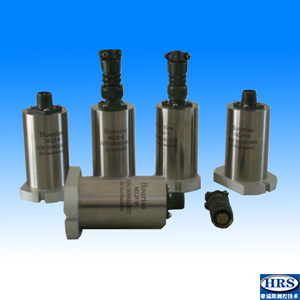

MLS / V-9 ultra-low frequency vibration displacement / speed sensor

  • Product description: MLS / V-9 ultra-low frequency vibration displacement / speed sensor is mainly used for vibration measurement of turbine, low speed rotating machine (mill), engineering construction (such as dams and b
  • INQUIRY

MLS / V-9 ultra-low frequency vibration displacement / speed sensor is mainly used for vibration measurement of turbine, low speed rotating machine (mill), engineering construction (such as dams and bridges). This type of sensor has been used in hundreds of hydroelectric power plants such as the Three Gorges and Ertan.

Frequency response: 0.5 ~ 200Hz (-3db)

Sensitivity:

Displacement type: 8mV /μm ± 5% (can be adjusted according to customer)

velocity type: 300mV / mm / s (according to customer adjustment)

Maximum measurable range:

Associated with sensitivity, the greater the sensitivity, the smaller the range.

The smaller the sensitivity, the greater the range.

Output form: -10V~+10V,+2V+18V,-2V-18V,420mA

◎Amplitude Linearity: <3%

Power supply: ± 12VDC, + 24VDC, -24VDC

Sealed and welded with stainless steel.

Use temperature range: -30 ~ 60

Environmental conditions: dust, moisture (95% non-condensing)

Weight: 700g (waterproof)

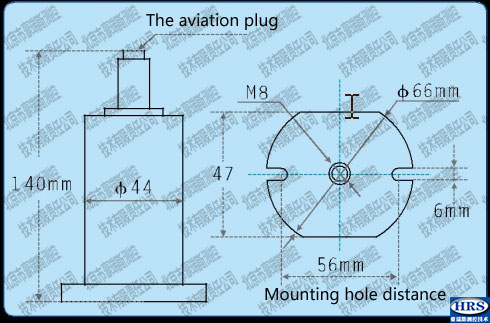

Installation form

1) is fixed in the center hole of the base with a M8 double-headed screw

2) Secure the base with two M5 screws

Order Model Specification

A   B    C    D    E

ML-  9-□□ - □□ - □□

* A: Displacement / velocity:

S - displacement type

V - velocity type

* B: Installation type

H - horizontal

V - vertical

* C: □□Output form:


01:-10V~+10V

02:+2V+18V

03:-2V-18V
04:420mA



* D: □□Power:

01:±12VDC(-10V~+10V
02:+24VDC(+2V+18V420mA)
03:-24VDC(-2V-18V


00: Customer requirements

* E: □□ Output wiring

01: direct outlet

02: aviation plug

03: Terminal connector
