Vibration speed sensor

  • MLV-8 / MLV-8T vibration velocity sensor
  • MLV-8 / MLV-8T vibration velocity sensor
  • MLV-8 / MLV-8T vibration velocity sensor
MLV-8 / MLV-8T vibration velocity sensorMLV-8 / MLV-8T vibration velocity sensorMLV-8 / MLV-8T vibration velocity sensor

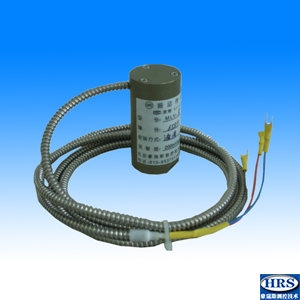

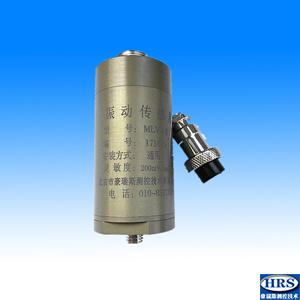

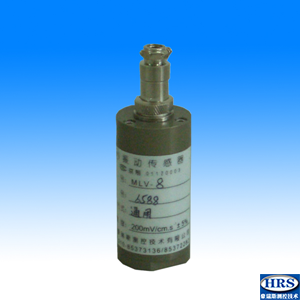

MLV-8 / MLV-8T vibration velocity sensor

  • Product description: MLV-8 series of vibration velocity sensor can be used to measure the vibration of the bearing housing, casing or structure. This sensor measures the vibration relative to the free space of the absolut
  • INQUIRY
▲ frequency response: 10 ~ 800Hz (-3db)
▲ Sensitivity: 20.0mv / mm s-1, ± 5%
(Measured at 80 Hz at a speed of 10 mm / s)
▲ amplitude linearity: <3%
▲ lateral sensitivity ratio: <5%
▲ maximum measurable displacement: 1mm (single peak)
▲ working direction: sensor mounting surface below 0 °
MLV-8 0 ° ± 100 ° (Universal)
▲ output resistance: ≤600Ω
Insulation resistance:> 2MΩ
▲ output wiring: floating output. When the sensor base by an impact,
1 # core output is (+), 2 # output is (-).

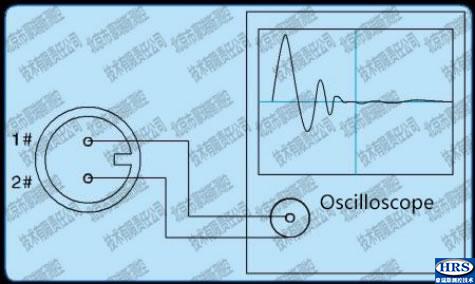

Access oscilloscope, 1 # then the core, 2 # ground, the waveform as shown:

▲ environmental conditions: dust, moisture (95% non-condensing)
▲ Weight: about 200g
▲ installation method:
1) Fix the center hole of the base with an M8 stud bolt
2) with a fast unloading magnetic base (for on-site testing)
▲ Order Model:
MLV-8
MLV-8T (high temperature type)
▲ Operating temperature range:
Standard type: -30 ~ 120 ℃
High temperature type: -30 ~ 260 ℃ (Order)

▲ appearance size: Φ35 × 70mm
